NEW IoT LoRa
LoRa Router

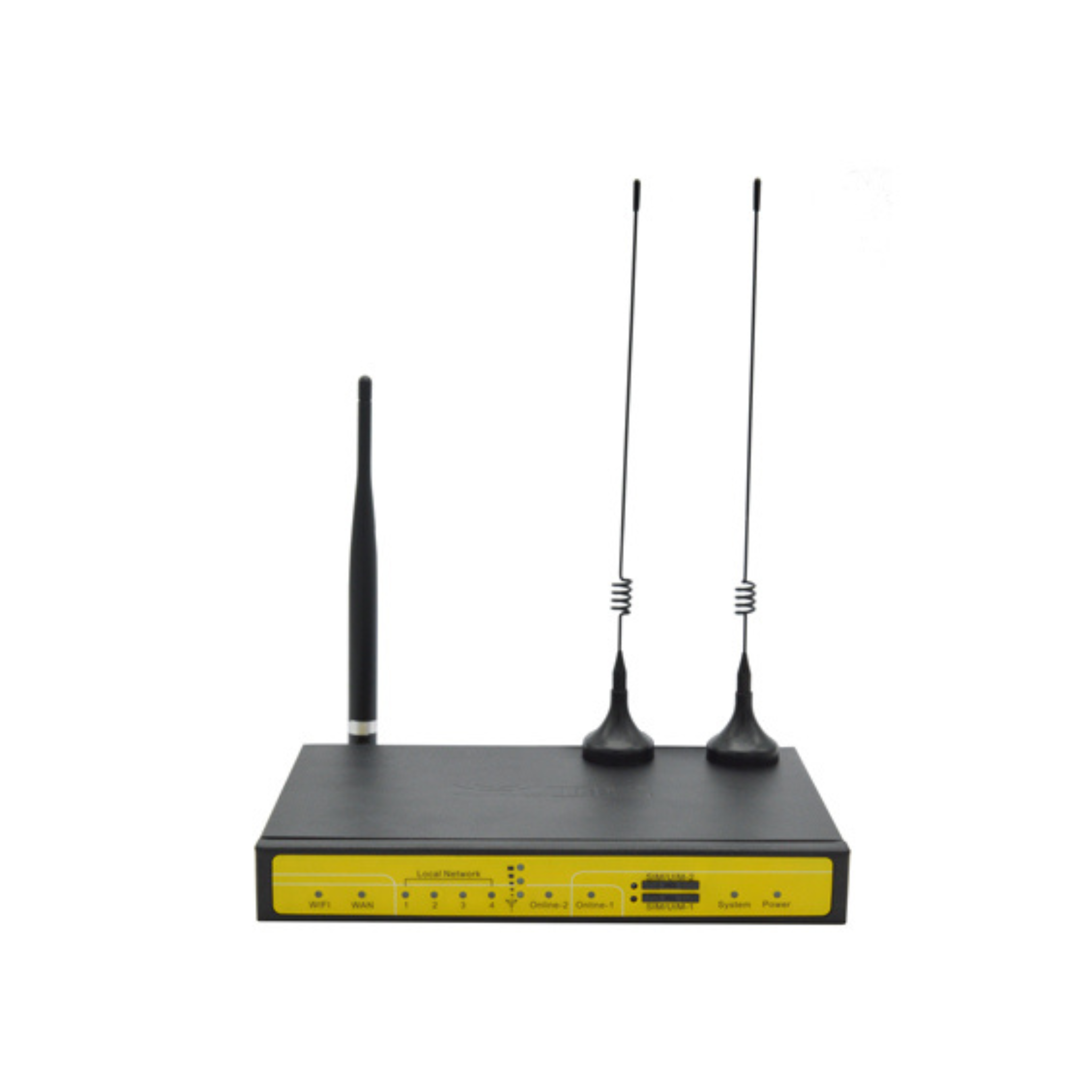

LoRa Gateway is an industrial-grade IoT gateway combining LoRa long-range communication with cellular, Ethernet, and Wi-Fi connectivity, enabling reliable data aggregation, edge routing, and remote monitoring for smart city, industrial automation, and M2M applications.
Need bulk pricing or technical details? Express Interest
See this product in action:
Smart Factory Wire-Free TelemetryLarge-Scale Agricultural MonitoringIndustrial Protocol ConversionSmart Grid & Utility SubstationMission-Critical IoT Redundancy
Explore Use Cases
Globally shipping available
Shipping Policy
1-year warranty Warranty Policy
- The LoRa Gateway is a robust industrial IoT gateway designed to aggregate, transmit, and manage sensor data over long-range LoRa networks while leveraging cellular, Ethernet, and Wi-Fi backhaul connectivity. Built with an industrial-grade 32-bit processor and embedded real-time operating system, it ensures stable, secure, and continuous operation in harsh environments. Supporting multiple cellular standards including LTE, WCDMA, EVDO, and GPRS variants, the gateway seamlessly bridges field devices with cloud platforms. With ultra-high receiver sensitivity up to -140 dBm and LoRa communication distances of up to 9 km, it is ideal for smart factories, smart grids, environmental monitoring, and large-scale IoT deployments. The rugged metal enclosure, extensive interface options, VPN support, and advanced network management features make the LoRa Gateway a reliable backbone for industrial and smart infrastructure networks.
Technical Specifications
Core System Specifications
- Processor
- Industrial-grade 32-bit CPU
- Operating System
- Embedded real-time operating system
- Watchdog
- Hardware and software watchdog support
- Memory
- Flash 16MB (expandable to 64MB), DDR2 128MB
LoRa Communication
- Frequency Bands
- 433 / 470 / 780 / 868 / 915 MHz
- Receiver Sensitivity
- < -140 dBm
- Transmission Power
- < 30 dBm
- Indoor Communication Distance
- Up to 2 km (urban)
- Outdoor Communication Distance
- Up to 9 km (line-of-sight)
- Data Rate
- Adjustable: 0.3 / 0.6 / 1.0 / 1.8 / 3.1 / 5.5 Kbps
Cellular Connectivity Options
- Supported Technologies
- LTE FDD, LTE TDD, WCDMA, EVDO, CDMA1X, GPRS/EDGE
- Maximum Downlink Speed
- Up to 100 Mbps (LTE FDD)
- Maximum Uplink Speed
- Up to 50 Mbps (LTE FDD)
- SIM Support
- 1 × SIM/UIM slot (1.8V / 3V)
Wi-Fi Specifications
- Wi-Fi Standard
- IEEE 802.11 b/g/n
- Maximum Throughput
- Up to 150 Mbps
- Security
- WEP, WPA, WPA2, MAC filtering
- Operating Modes
- AP, Client, Repeater, Bridge
Interface & Ports
- WAN Ports
- 1 × 10/100 Mbps Ethernet (RJ45)
- LAN Ports
- 4 × 10/100 Mbps Ethernet (RJ45)
- Serial Interface
- RS232 / RS485 / RS422 (15KV ESD protection)
- Antenna Interfaces
- Cellular, LoRa, Wi-Fi (SMA connectors)
- Indicators
- Power, System, Online, LoRa, LAN, WAN, Wi-Fi, Signal Strength
Power & Electrical
- Input Voltage
- DC 5V to 36V
- Standard Power Supply
- DC 12V / 1.5A
- Protection
- Reverse voltage, over-voltage protection
Mechanical & Environmental
- Enclosure
- Metal housing
- Protection Class
- IP30
- Dimensions
- 207 × 135 × 28 mm
- Weight
- 790 g
- Operating Temperature
- -35°C to +75°C
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 95% non-condensing
USE CASES
Helping Your Business
Discover how this device can transform your daily operations.
Smart Factory Wire-Free Telemetry
Deep Indoor Penetration
9 km Line-of-Sight Range
Modbus, OPC UA & MQTT
IEC 60870-5-104 Support
Intelligent Cellular/WAN Failover
Smart Factory Wire-Free Telemetry
Eliminate expensive and tangled cabling across massive manufacturing floors. The gateway's ultra-high receiver sensitivity (-140 dBm) easily penetrates heavy industrial machinery and concrete walls, aggregating data from hundreds of low-power LoRa sensors spread up to 2 km indoors.
Smart Manufacturing → Large-Scale Agricultural Monitoring
Monitor vast expanses of farmland without deploying multiple expensive cell plans. A single centrally located LoRa gateway can receive real-time soil moisture, weather, and asset tracking data from low-power LoRaWAN nodes up to 9 km away, forwarding the aggregated data via a single 4G/5G backhaul.
Smart Agriculture → Industrial Protocol Conversion
Bridge the gap between legacy industrial equipment and modern cloud platforms. The LoRa Edge Gateway acts as an intelligent translator, locally converting Modbus RTU/TCP or OPC UA data from connected PLCs into lightweight MQTT payloads before transmitting them securely over cellular networks.
Industrial Edge Computing → Smart Grid & Utility Substation
Securely connect decentralized energy assets to your central SCADA system. Built with an IP30 metal enclosure and hardware watchdogs, the gateway reliably aggregates wireless smart meter data and wired IEC-104 substation telemetry, transmitting it through encrypted IPsec or OpenVPN tunnels.
Smart Utilities → Mission-Critical IoT Redundancy
Ensure your LoRa sensor network never goes offline. The gateway supports intelligent dual-link switching, automatically failing over from a primary wired Ethernet backhaul to the integrated 4G/5G cellular network if the primary ISP connection drops.
Mission-Critical IoT →FAQs LoRa Router
Can't find what you're looking for?
Chat to supportA LoRa Gateway collects data from LoRa-based sensors and devices and forwards it to cloud or enterprise platforms using cellular, Ethernet, or Wi-Fi backhaul. It is widely used in smart cities, industrial IoT, utilities, and environmental monitoring.
The gateway supports up to 9 km outdoor line-of-sight communication and up to 2 km in dense urban or indoor environments, depending on terrain and interference.
Yes, it supports multiple cellular technologies including LTE, WCDMA, EVDO, and GPRS, ensuring reliable data transmission even if wired networks are unavailable.
Yes, it features an industrial-grade processor, metal enclosure, watchdog protection, and wide operating temperature range, making it ideal for harsh industrial deployments.
The gateway can be installed on walls or control panels using standard industrial mounting methods. External antennas are connected via SMA connectors for LoRa, cellular, and Wi-Fi.
Yes, the gateway supports VPN technologies such as PPTP, L2TP, and IPSec for secure data transmission and remote management.
Yes, a single LoRa Gateway can manage and aggregate data from hundreds of LoRa end devices, depending on traffic configuration and data rate.
